Automatic Reset Single Phase Protection Relay Overvoltage Undervoltage Protector Switch 220V

Name: Automatic Reset Single Phase Protection Relay Overvoltage Undervoltage Protector Switch 220V
Brand: GINRI
Price: 1 USD

Automatic Reset Single Phase Protection Relay Overvoltage Undervoltage Protector Switch 220V Manufactures

Brand Name : GINRI

Model Number : SVR1000/AD48

Certification : CE

Place of Origin : China

MOQ : 10Pcs

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 20000Pcs per Month

Delivery Time : 5-8 working days

Packaging Details : 1 relay in individual box

measuring circuit : A1+ A2-

rated voltage : AC/DC110-240V

monitoring functions : under voltage

delay time : 0.1-999a

Contact Now

GINRI Automatic Reset Overvoltage Undervoltage Protector Switch Relay 220V

The Features of SVR10000

-- Powered by the measuring circuit

-- Built-in LCD and keypad afford a precise,digital setting

-- Compact modular 43mm housing

-- Adjustable over- and undervoltage threshold

-- Independent adjustable delay time for overvoltage, undervoltage

-- 1 CO & 1NC contacts

-- Fault recording with last 3 faults

♦ Protective Functions

-- Overvoltage

-- Undervoltage

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

♦ Technical data

Model	SVR1000/D12	SVR1000/AD48		SVR1000/AD220

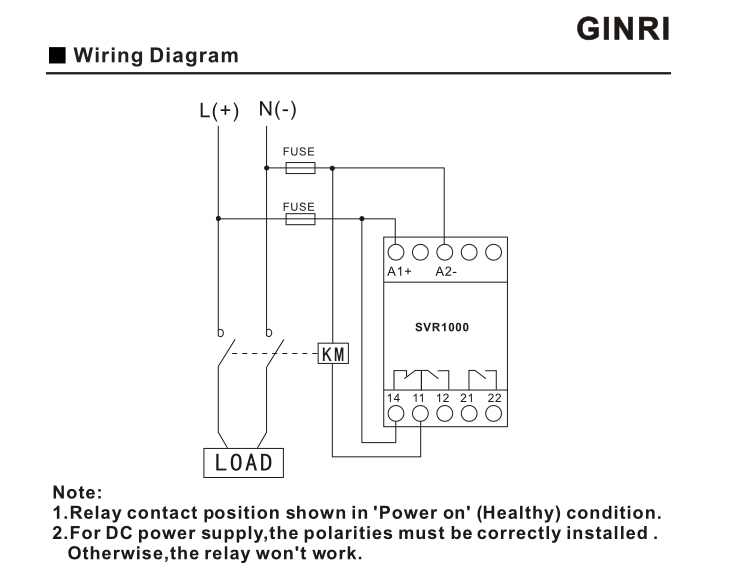

Measuring circuit	A1+,A2-
Rated voltage	DC 12V	AC/DC 24~48V,50/60Hz		AC/DC 110~240V,50/60Hz
Monitoring functions	overvolatege, undervoltage
Overvoltage setting range	DC 9.0~18.0V adjustable		AC/DC 20.0~80.0V adjustable		AC/DC 50.0~300V adjustable
Undervoltage setting range	DC 9.0~18.0V adjustable		AC/DC 20.0~80.0V adjustable		AC/DC 50.0~300V adjustable
Voltage hysteresis	0.1~6.0V adjustable		0.1~30.0V adjustable		1.0~90.0V adjustable
Delay time for overvoltage and undervoltage	0.1-999s adjustable
Reset mode	Manual/ Automatic/Automatic with power-on delay
Delay time for reset	0.1-999s adjustable
Indicators	LCD indicating voltage,operationand fault status
Output contacts	1 CO & 1NC
Contact capacity	6A ,250VAC
Dimensions (H x W x D)	80×43×54mm
Mounting	DIN rail

Automatic Reset Single Phase Protection Relay Overvoltage Undervoltage Protector Switch 220V

The difference between single-phase power and three-phase power

1. The power generated by the generator is three-phase. Each phase and neutral point of the three-phase power supply can form a single-phase loop to provide power for the user. Note that in the AC circuit, it cannot be called the positive pole or the negative pole. It should be called the line end (called the live line in civil power) and the neutral line (called the neutral line in the civil power).
